RSLogix 5000 Kinetix 6000 Servo Soft Limits

Have you ever had servo physical axis faults that seem to happen and was hard to understand why the programmer put limits or hardware devices to put limits on a servo controller?

I have and this is why I made this article, it will briefly describe soft limits and hard limits of servos controlled by RSLogix 5000 or Studio 5000. Also, highlighting how you can trouble shoot them in the event you have machines that have certain limitations in the application..

Therefore, to understand how this is done, you will first be required to open the axis attributes of the servo, navigate to the limits tab.

Here you will see in the servo attribute tab that there are two limit types:
-Servo Hard Travel Limits
-Servo Soft Travel Limits

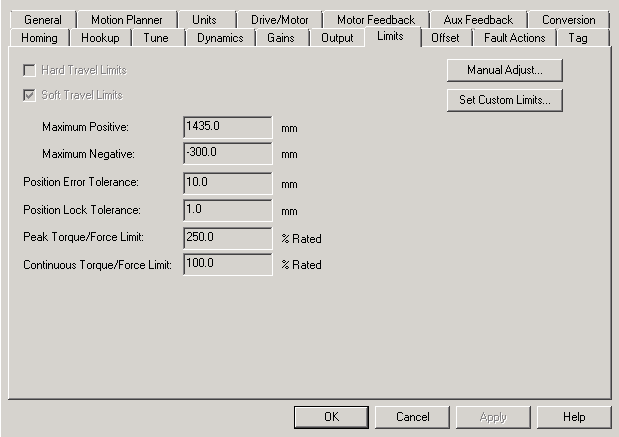

Servo Axis Soft Limits

Allen Bradley Servo Hard Travel Limits

This is usually attached to the hardware devices and can be selected by marking the checkbox and defining the maximum positive.
This can be adjusted manually or by defining the value in the Axis Property.

Allen Bradley Servo Soft Travel limits

This is usually meant for the software part of a device, some systems have this in order to provide support and effort to help prevent the machine from any physical damage.

Here is a video I made to better describe this, this video can also be seen on my YouTube channel.

RSLogix 5000 Kinetix 6000 Servo Limits Breakdown

As you can see from the video, even though it is only a little more than six minutes long, the details of soft limits and overcoming them are well detailed and describe. What I try to do in my videos, is to give a very detailed understanding in a short time frame them cover other elements over an article on my website.

In the next section of this article, I will go over a few more elements on how to recover from a physical fault created by a soft limit.

How to fix a servo physical fault in RSLogix 5000 or Studio 5000

One of the easiest and the fastest means to clear such errors is via the motion as a motion axis direct command if the servo can be controlled or seen so you are aware of the motion commanded by you. You are able to access this by right-clicking on the Axis property and selecting the Motion Axis Direct Commands.

When you do this feature, you need to select the axis that you want to control, make sure you turn on the servo before running or jogging. The system will either do the task commanded or provide an error why it did not work.

Servo Motion Axis Direct Command Forward

Physically Move The Servo

The second option is to physically move the servo back to under that limited position or use the axis property to adjust it back. After moving the servo physically you will then be expected to reset the fault back to the initial position now via motion as a motion axis direct command.

Raise the Servo Soft Limits – Temporary Use Only

There is a third way of resolving this fault but is to be used as a temporary fix, this option is mainly used when you are unable to physically move it using your hands.
You can temporarily raise the limit to make it possible for you to be able to move it through the program or through a natural machine start. To do this, open the axis attribute tab and adjust the soft limit tolerance. If a hardware device or hard limit is used when you have to use option one or option two.
Servo Soft Limits High and Low
After the soft limit has been adjusted, open the motion axis direct commands then command a reset or right click the axis then click reset. At this point now, you will be able to move the servo through the software.
Note: Make sure you put the limits back to what they were at once the system is back healthy and running correctly.
In general, the article has described the difference between soft and hard limit. It has also described how to set up the two and lastly, the article has also described how to troubleshoot a machine that has these limits and it happened to develop a physical access fault.
